Products

FCCU

Blac Inc our principal company from USA manufactures and we supply & service FCC Slide Valve, Double Disc Flue Gas Valve & Butterfly Valve. This is supported by Electro Hydraulic Actuators & HPCU manufactured by same principal. The brand is approved and used by major FCC Licensors around the world.

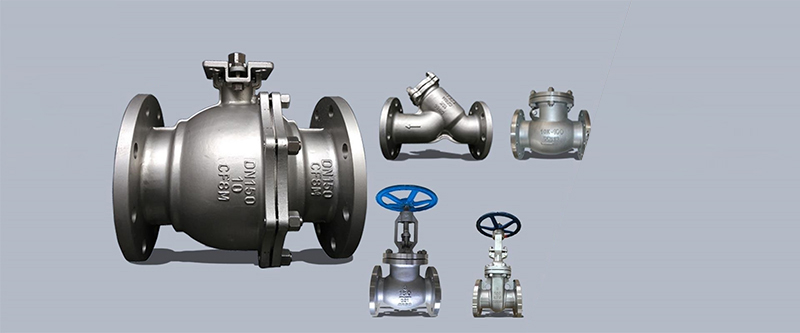

GATE VALVE / GLOBE / CHECK VALVES

• Size: ½” to 48" (DN 15 to DN 1200)
• Pressure Rating: ASME 150# to 2500#
• Materials: Carbon Steels, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels
• Design Standard: API 602, API 600, MESC SPE 77 / 101, MESC SPE 77 / 102, ASME B16.34
• Construction Details: Bolted Bonnet / Pressure Seal Bonnet, OS & Y Type Rising Stem , Piston , Swing Type
• End Connection: Screwed, Socket Weld, Flanged, Hub End, Butt-Weld
• Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

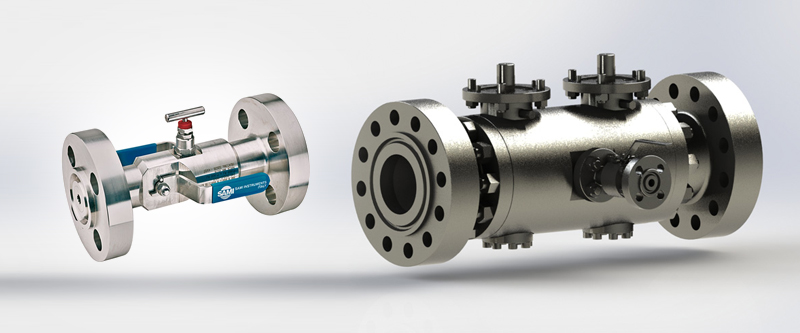

BALL VALVES & DBB VALVES

• Size: 2" to 56" (DN 50 to DN 1400)
• Pressure Rating: ASME 150# to 2500#, API 3000PSI to 20000PSI
• Materials: Carbon Steels, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steels
• Construction Details: Floating / Trunnion / DOUBLE BLOCK & BLEED / Soft and Metal Seated
• End Connection: Screwed, Socket Weld, Flanged, Hub End, Butt-Weld
• Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

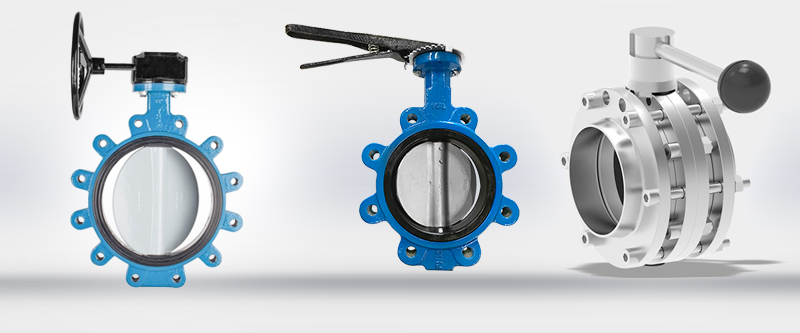

BUTTERFLY VALVES (CENTRIC , DOUBLE ECCENTRIC and TRIPLE OFFSET )

• Size: 2" to 88" (DN 50 to DN 2200)
• Pressure Rating: ASME 150# to 900#
• Standard Material of construction (MOC)
•     Body : WCB / LCB / LCC / CF8 / CF8M / Duplex SS / Al. Bronze.
•     Disc : WCB / LCB / LCC / CF8 / CF8M / Duplex SS / Al. Bronze.
•     Soft seated / metal seated
• Operation: Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)
• Wafer Lugged & Flanged type
• Conformity to codes and standards –
• API 609 Category B / ASME B16.34 / API 609 / API 598 / ANSI / FCI 70-2
• ASME B16.5 (#150) / API 607 VI Edition

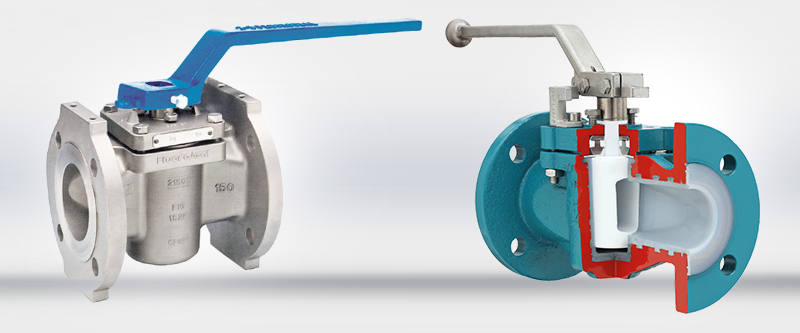

PLUG VALVES

• Size: ½” to 24"
• Pressure Rating: ASME 150# to 2500#
• Materials: Carbon Steels, Low Temperature Carbon Steel, Stainless Steel, Duplex Stainless Steels
• Sleeve material : PTFE , RTFE (Glass , Brass, Graphite), TFM
• End Connection: Screwed, Socket Weld, Flanged, Hub End, Butt-Weld
• Operator / Actuator: Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised
